The introduction of composition & properties of Inconel alloys reveals that these materials are specifically designed for challenging environments. The unique blend of elements in Inconel, primarily nickel, chromium, and iron, contributes to its distinct characteristics. Additionally, the inclusion of molybdenum, cobalt, and titanium enhances its performance. This composition enables Inconel to resist corrosion and withstand high temperatures, making it an excellent choice for demanding applications.
Key Takeaways
Inconel alloys are mostly nickel, chromium, and iron. This mix helps them handle heat and avoid rust, making them great for harsh places.
Nickel is the main part of Inconel, making up at least 58%. It keeps the alloy strong and helps it survive high heat.
Different types of Inconel, like 600, 625, and 718, have special mixes. Each type is made for certain jobs, like in jet engines or factories.
Main Ingredients of Inconel Material
Nickel (Ni)
Nickel is the main part of inconel material. It makes up at least 58% of the alloy. This high nickel amount helps it resist heat and corrosion. Nickel also keeps the material strong in very hot conditions. This is why inconel is used in planes, chemical plants, and ships.
Chromium (Cr)
Chromium is another important part of inconel. It usually makes up 20% to 23% of the alloy. Chromium stops the material from rusting or breaking down. This helps inconel work well in tough places with heat or chemicals.
Iron (Fe)
Iron is found in different amounts in inconel. It is not the main part but helps keep the material stable. Iron also lowers the cost of making inconel. Even though it plays a smaller role, iron helps the material stay strong under pressure.
Other Elements in Inconel Material
Besides nickel, chromium, and iron, inconel has other elements like molybdenum, cobalt, and titanium. These make the material even better. Molybdenum stops small holes from forming. Cobalt makes it stronger. Titanium and aluminum help make the material harder and tougher. Here’s a table showing the elements in inconel:
Element | Min (%) | Max (%) |
|---|---|---|
Cr | 20.00 | 23.00 |
Ni | 58.00 | N/A |
Mo | 8.00 | 10.00 |
Co | N/A | 1.00 |
Nb (+Ta) | 3.15 | 4.15 |
Ti | N/A | 0.40 |
W | N/A | N/A |
Cu | 0.10 | 0.50 |
C | N/A | 0.50 |
Mn | N/A | 0.015 |
N | N/A | 0.015 |
Si | N/A | 5.00 |
P | N/A | 0.40 |
S | N/A | N/A |
Fe | N/A | N/A |
Al | N/A | N/A |
You can also see the composition in this chart:
These extra elements make inconel useful and dependable in many industries.
Role of Each Element in Inconel Material Composition
Nickel: Stops rust and handles high heat
Nickel is the main part of Inconel. It makes up at least 58% of it. This high amount helps stop rust and handle very high heat. Nickel keeps the material strong even in extreme temperatures. That’s why it’s used in jet engines and power plants.
Treatment Method | Rust Resistance Boost | Heat Resistance | Hardness Change |
|---|---|---|---|
Big improvement | Very high | Gets harder |
This table shows how nickel helps Inconel work better. For example, Inconel 718, a nickel-chromium alloy, is great at resisting rust and staying strong. It’s perfect for planes and factories.
Chromium: Stops damage from heat and chemicals
Chromium helps protect Inconel from damage. It creates a thin layer on the surface that stops rust. Chromium makes up about 20% to 23% of the alloy. It helps Inconel stay strong in hot or chemical-filled places.

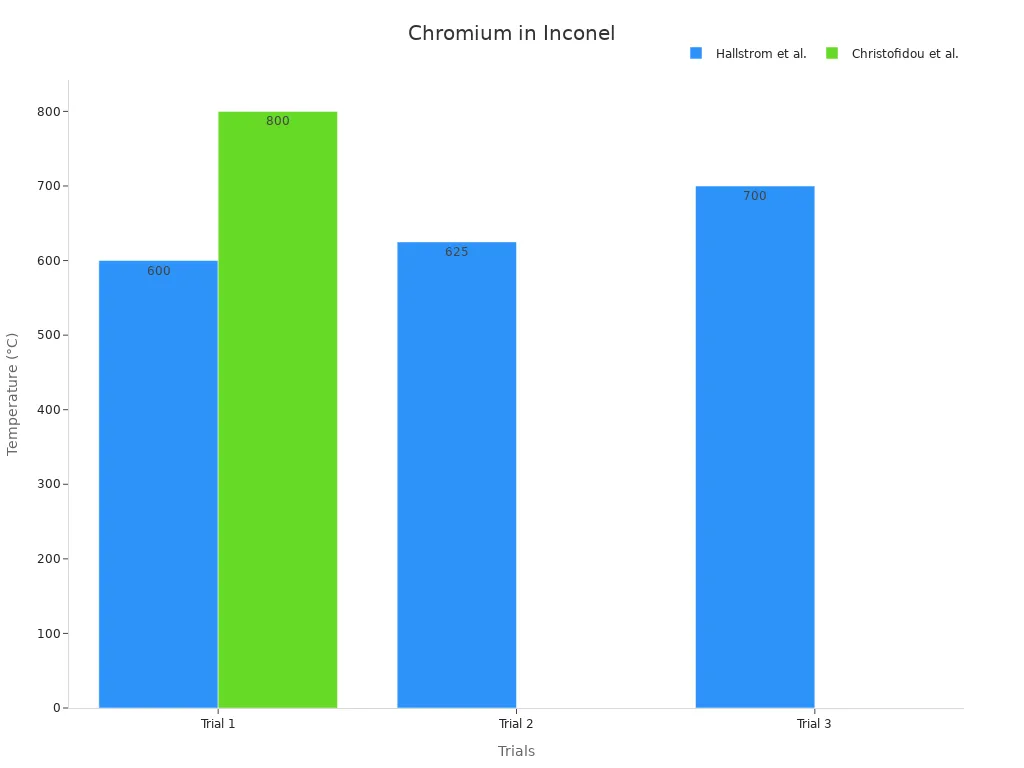

Tests show chromium helps Inconel resist heat damage. This makes it great for high-heat jobs.
Iron: Adds strength and lowers cost
Iron helps keep Inconel strong. It’s not the main part but still important. Iron also makes Inconel cheaper to produce. Even though it’s a smaller part, it helps the material stay tough and affordable.
Molybdenum and Cobalt: Make it stronger and stop tiny holes
Molybdenum and cobalt make Inconel stronger. Molybdenum stops tiny holes from forming in harsh places. It also keeps the material strong in high heat. Cobalt helps Inconel handle tough conditions, like in chemical plants.
Molybdenum stops tiny holes in rough environments.
Cobalt makes it stronger for heat and chemicals.
Titanium and Aluminum: Make it harder and stronger
Titanium and aluminum make Inconel harder and stronger. They improve its ability to handle stress. These elements are important for things like airplane parts that need to be very strong.
Comparison of Inconel Grades and Their Composition
Overview of Common Grades (e.g., Inconel 600, 625, 718)
Different Inconel types, like 600, 625, and 718, are made for specific jobs. Inconel 600 resists rust and damage from heat and chemicals. It works well in hot and harsh environments. Inconel 625 is very strong and avoids cracks or pits. This makes it great for use in ships and airplanes. Inconel 718 handles extreme heat and pressure. It is often used in jet engines and turbines.
Key Differences in Inconel Material Composition
The mix of elements in each alloy gives it special features. Inconel 600 has lots of nickel and chromium, which stop rust. Inconel 625 includes molybdenum and niobium, making it stronger and crack-resistant. Inconel 718 has titanium and aluminum, which make it tougher through a process called hardening. These differences help you pick the right alloy for your needs.
Table: Chemical Composition of Popular Inconel Grades
Here’s how the elements differ in these Inconel types:
Element | Inconel 600 (%) | Inconel 625 (%) | Inconel 718 (%) |
|---|---|---|---|
Nickel | 72.0 min | 58.0 min | 50.0-55.0 |
Chromium | 14.0-17.0 | 20.0-23.0 | 17.0-21.0 |
Molybdenum | – | 8.0-10.0 | 2.8-3.3 |
Niobium | – | 3.15-4.15 | 4.75-5.5 |
Titanium | – | – | 0.65-1.15 |
Iron | 6.0-10.0 | 5.0 max | Balance |
This table shows how the elements in each alloy change. These changes affect how they work and where they are used.
Inconel alloys mix nickel, chromium, and other elements. These elements make it strong, resist rust, and handle heat. Different grades of Inconel are made for special jobs. This makes Inconel important for planes and chemical factories.
FAQ
Why is Inconel good for high heat?
Inconel stays strong and doesn’t break at high temperatures. It works well in jet engines and power plants.
How does Inconel stop corrosion?
Nickel and chromium create a shield on the surface. This shield blocks damage from water, chemicals, and tough conditions.
Can Inconel be used near the ocean?
Yes, Inconel doesn’t crack or weaken from saltwater. Molybdenum helps it stay strong in marine jobs.
